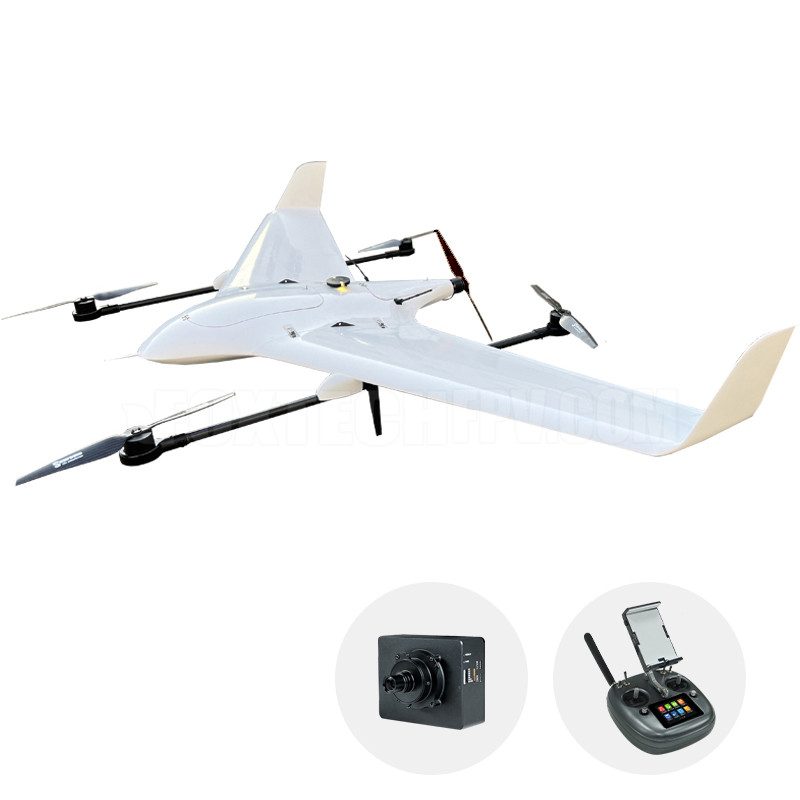

Saber 210 Flying Wing VTOL Mapping Combo 17758
Chat PenjualDescription
Saber 210 Flying Wing features high lift power, long endurance, light material, stable flying, and easy operating, with ESC telemetry function and quick-assemble wings.
As a flying wing aircraft, Saber 210 has higher lift power due to its body-wing-blending structure, and can maintain stable flying performance. The main material of Saber 210 is fiberglass which is much lighter.
The ESC used for Saber 210 supports ESC telemetry function, which helps to send ESC and motor working status, including the temperature of ESC, the voltage, current, and RPM of the motors, to the operator, so as to monitor the working status of the propulsion system. It also has the function of filtering out shakes and noises caused by rotating propeller.
Assemble the motor and ESC on one base for better heat-dissipation, better wind-resistance and to reduce weight-bearing.
Aiming to be a mapping and inspecting VTOL, Saber 210 can load MAP 01, MAP A7R series to do mapping missions, or with EH314 MINI gimbal camera to carry out inspection missions.
Specification:
Wingspan: 2150 mm
Length: 1000 mm
Clearance to Ground: 75 mm
Material: Fiberglass, Carbon Fiber
Basic Empty Weight: 6.8 kg (no battery, no payload)
Max. Take-off Weight: 13 kg
Suggested Cruising Speed: 19-20 m/s
Stall Speed: 16 m/s
Max Climbing Speed: 5 m/s
Max Descending Speed: 3 m/s
Take-off/Landing: VTOL
Working Voltage: 48 V
Working Temperature: -10~40℃
Carrying Case: 1300*620*390mm
Features:
– Flying Wing
– ESC Telemetry
– Mapping & Inspection
Your Purchase Includes：
Mapping Combo
1x SABER 210 VTOL
1x Foxtech DA16S+ 16-Channel Radio Controller
1x Map-A7R Advanced Full-Frame Mapping Camera
1x C-RTK 2 PPK Module
2x (pair)17 inch Carbon Fiber Propellers
1x 17 inch Wooden Propeller
1x Flight Controller with GPS
1x Ultra Power UP1200+ Charger
1x Airspeed & Compass
5x Motor
5x ESC
2x Servo
2x UBEC
1x Assembling, tuned and Flying Test Service
1x Aluminum Carrying Case
Option:
1x Diamond 12S 32000mAh HV
