Geosun gAirHawk Series GS-2000N LiDAR Scanning System 7 Echos Long Detection Aerial VTOL Mapping High Accuracy
GS-2000N LiDAR Scanning System 7 Echos Long Detection Aerial VTOL Mapping High Accuracy

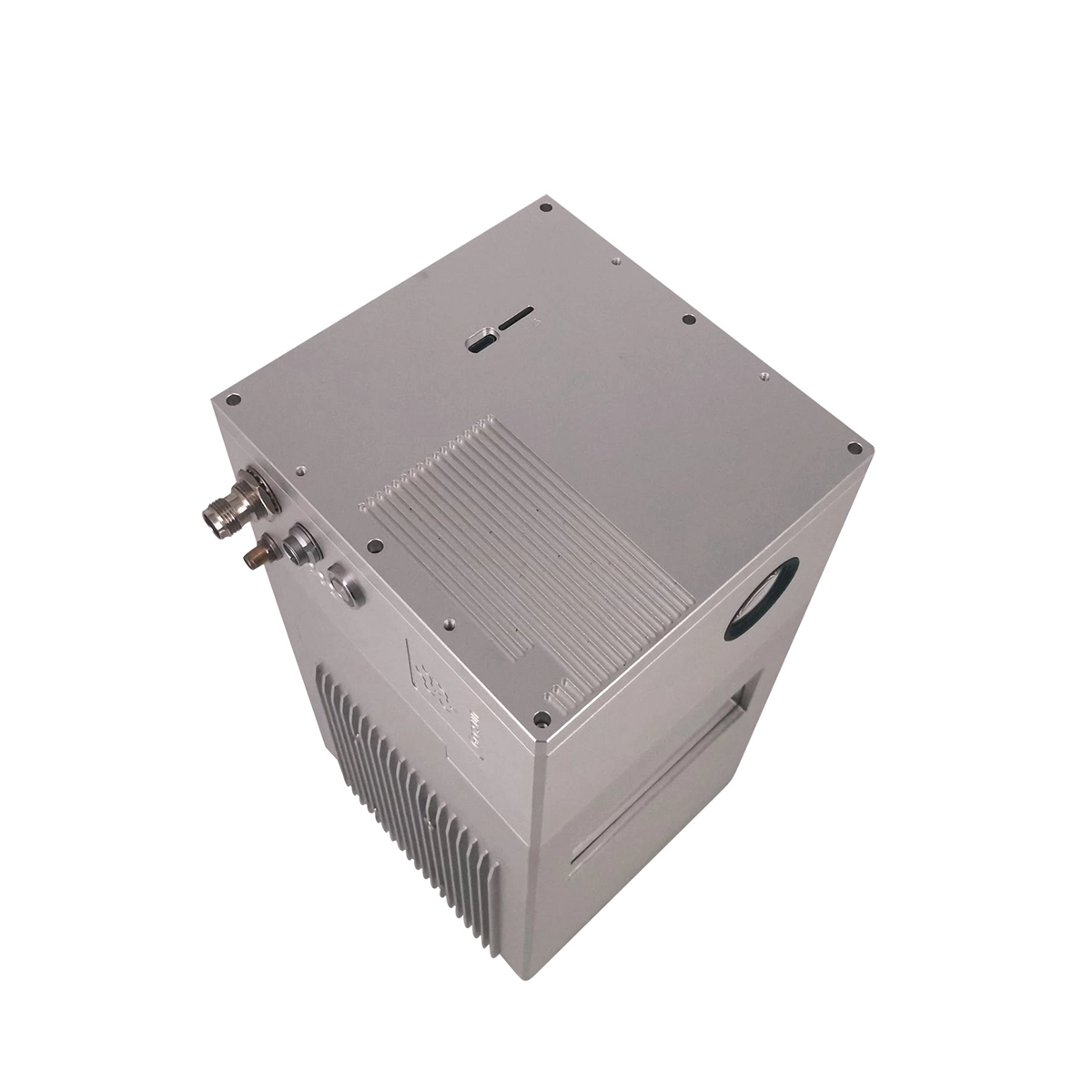

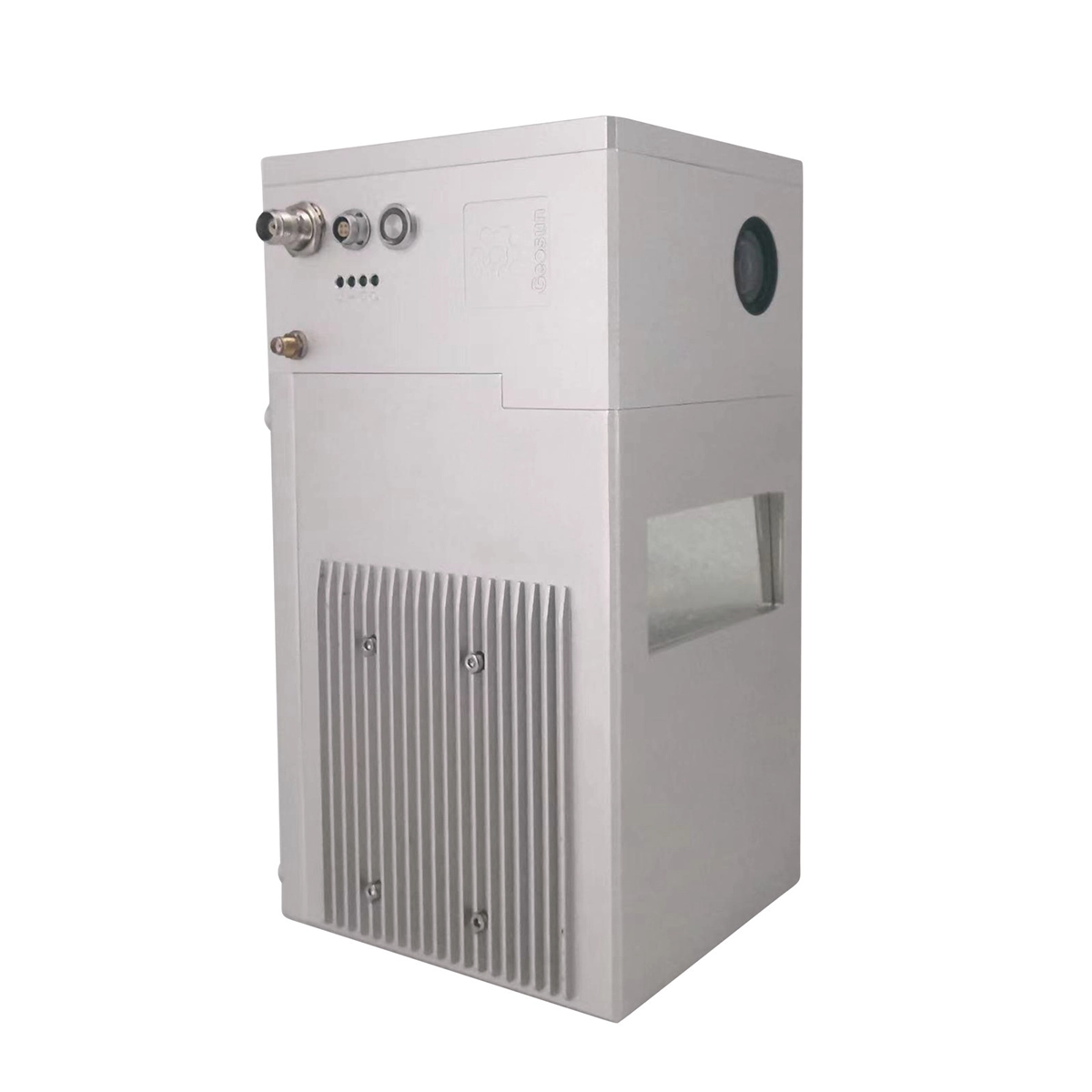

Geosun gAirHawk Series GS-2000N LiDAR Scanning System
gAirHawk GS-2000N is a kind of long range, compact LiDAR point cloud data acquisition system, integrated FT-1500H long range laser scanner, GNSS and IMU positioning and attitude determination system, and storage control unit, is able to real-time, dynamically, massively collect high-precision point cloud data and rich image information. It is widely used in the acquisition of 3D spatial information in surveying, electricity, forestry, agriculture, land planning.
| Name: | LiDAR Scanning System | Operation Efficency: | 2.8 K㎡ Per Single Flight |
|---|---|---|---|
| Application: | Topography, Forestry, Powerline, Smart City | Channel: | Mapping & Survey |
| Material: | Aluminum Alloy Body | Accuracy: | ≤10cm@600m |
| Dimension: | 245*140.5*125mm | Weight: | 3.2kg |
| Storage: | 64GB Max Support 128GB TF Card | Working Temperature: | -20°~+55° |
| Carry Platform: | Multi-Rotor, VTOL | Trajectory Software: | Shuttle |
| Point Cloud Software: | GAirHawk | ||
| Highlight: |
Lidar Drone Scanner Geosun, 1000m Lidar Drone Scanner, GS-1350N lidar scanner for drones |
||
Video
Spesifikasi
| LiDAR scanning system gAirHawk GS-2000N | ||
| Item Name | System Parameters | |
|
GS-2000N
Parameters |
Weight | 3.2kg |
| Working temperature | -20℃~+60℃ | |
| Power range | 12 V- 24 V | |
| Consumption | 65 W | |
| Carrying Platform | 6 Aixs Multi Rotor Drone,VTOL | |
| Storage | 64 GB storage, maximum support 128GB TF card | |
| Laser Unit
|
Measuring Range | 2000m@80% |
| Laser class | 1550 nm Class1 (IEC 60825-1:2014) | |
| Laser line number | FT-1500H Single-Beam | |
| Measuring accuracy | 3mm@100m | |
| Max. range | 2000m | |
| Return | Seven echos | |
| Scanning frequency | 50HZ-2000HZ | |
| Beam Divergence | 0.3mrad | |
| FOV | 75°-90°, adjustable | |
| POS Unit | Update frequency | 200HZ |
| Heading accuracy | 0.010° | |
| Pitch accuracy | 0.003° | |
| Rolling accuracy | 0.003° | |
| Position accuracy | Horizontal: 0.01m, Vertical: 0.02m | |
| GNSS signal type | GPSL1/L2/L5 GLONASSL1/L2 BDS B1/B2/B3 GAL E1/E5a/5b | |
| IMU | gSpin 410 | |
| Pre-processing software | POS software | Output information: position, speed, attitude |
| Point cloud software | Output point cloud data format: LAS format, custom TXT format | |
| Camera (built-in) | FOV | 48*33 Degree |
| Effective Pixel | 45 MP (Full Frame Camera) | |
| focal Length(mm) | 16 | |
