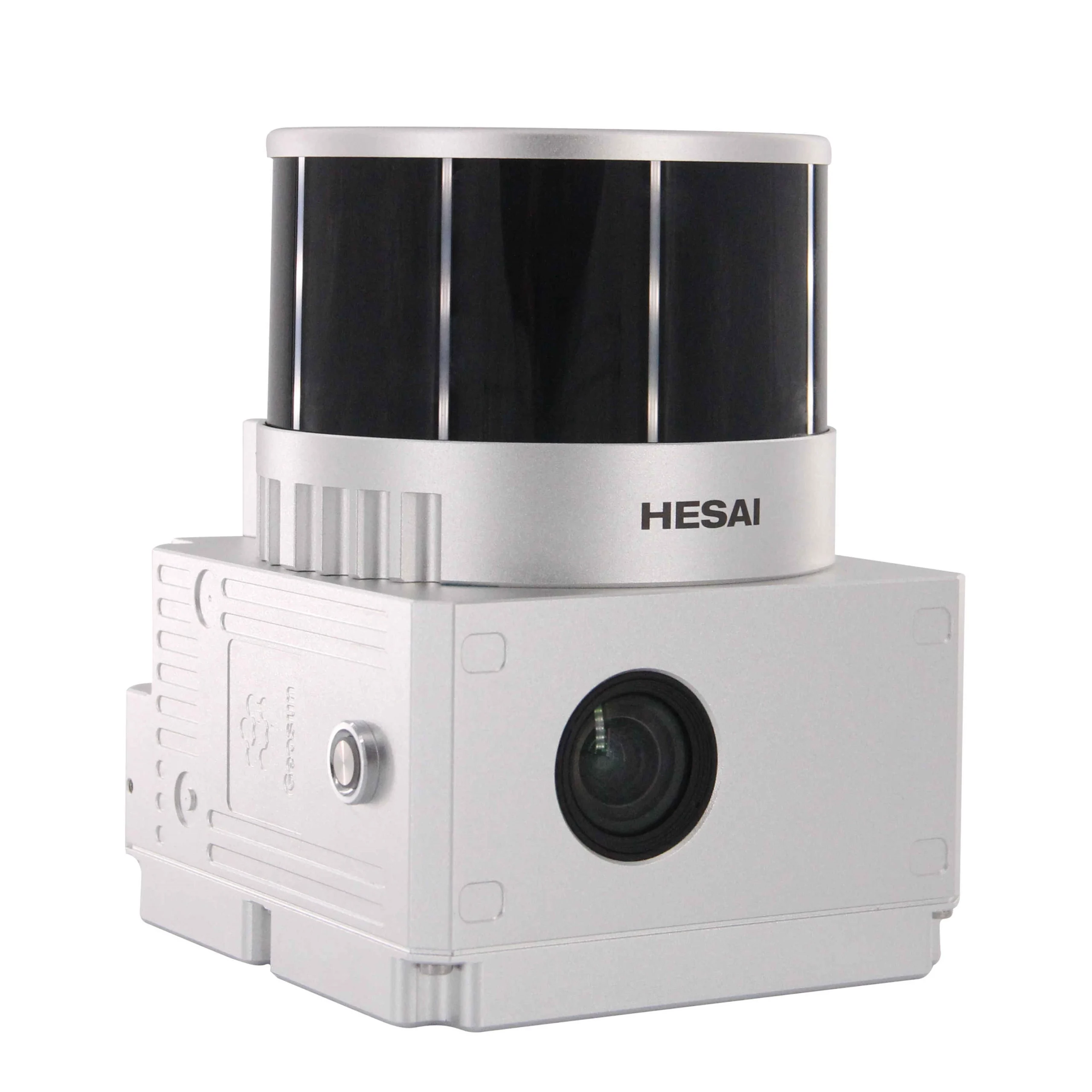

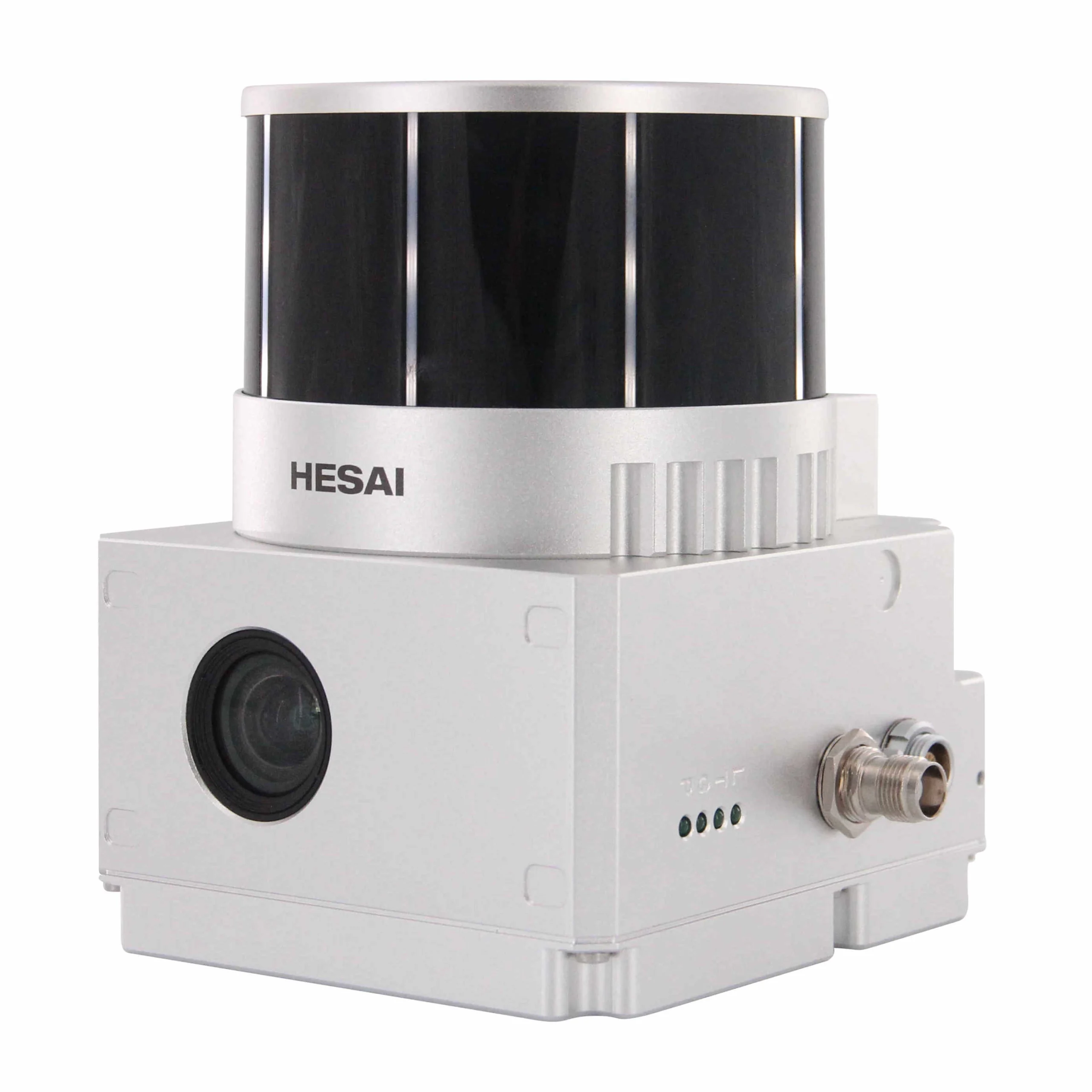

Drone Lidar Scanner Geosun GS-130X 3D Scanning Built-In RGB Camera Total Aerial Solution DJI M300 Cost Effective

Category: Lain-lain

Operation Efficiency:	1.6 K㎡ / Single Flight	Application:	Forestry
Channel:	32 Channel	Material:	Aluminum Alloy Body
Accuracy:	10cm@100m	Dimension:	14.410.912cm
Weight:	1.26kg	Storage:	64GB Max Support 128GB TF Card
Working Temperature:	-20°~+55°	Carrying Platform:	Multi-Rotor/VTOL
Trajectory Software:	Shuttle	Point Cloud Software:	GAirHawk
Highlight:	1.6 Km2 UAV Lidar Systems , HESAI XT UAV Lidar Systems , HESAI XT uav lidar sensor

Video

uav LiDAR Scanning System gAirHawk GS-130X
	Item Name	System Parameters
GS-130X Parameters	Weight	1.26 kg
	Measuring accuracy	Less than 0.1m @120m
	Working temperature	-20℃~+65℃
	Power range	12 V- 24 V
	Consumption	10 W
	Carrying Platform	GS-800 Multi Rotor and Other brand
	Storage	64 GB storage, maximum support 128GB TF card
Lidar Unit	Measuring Range	0.3m-120m@10% Reflectivity
	Laser class	905nm Class1 (IEC 60825-1:2014)
	Channel	32-Channel
	Range accuracy	±1cm (typical Value)
	Scanning frequency	10HZ, 20HZ
	data	Double echo 1,280,000 Points/Sec
	FOV	360°, adjustable
	Laser sensor	HESAI Pandar XT
POS Unit	Update frequency	200HZ
	Heading accuracy	0.017°
	Pitch accuracy	0.005°
	Rolling accuracy	0.005°
	Position accuracy	≤0.05m
	GNSS signal type	GPSL1/L2/L5 GLONASSL1/L2 BDS B1/B2/B3 GAL E1/E5a/5b
Pre-processing software	POS software	Output information: position, speed, attitude
Pre-processing software	Point cloud software	Output point cloud data format: LAS format, custom TXT format
Camera (built-in)	FOV	83 degree
	Effective Pixel	26 Mega Pixel
	Focal length(mm)	16
