AYK 320 VTOL

Home|Drone|Drone Fixed Wing / Drone Sayap Tetap|Drone Fixed Wing VTOL|AYK 320 VTOL
Home|Drone|Drone Fixed Wing / Drone Sayap Tetap|Drone Fixed Wing VTOL|AYK 320 VTOL
AYK 320 VTOL

AYK 320 VTOL

Chat Penjual

Description

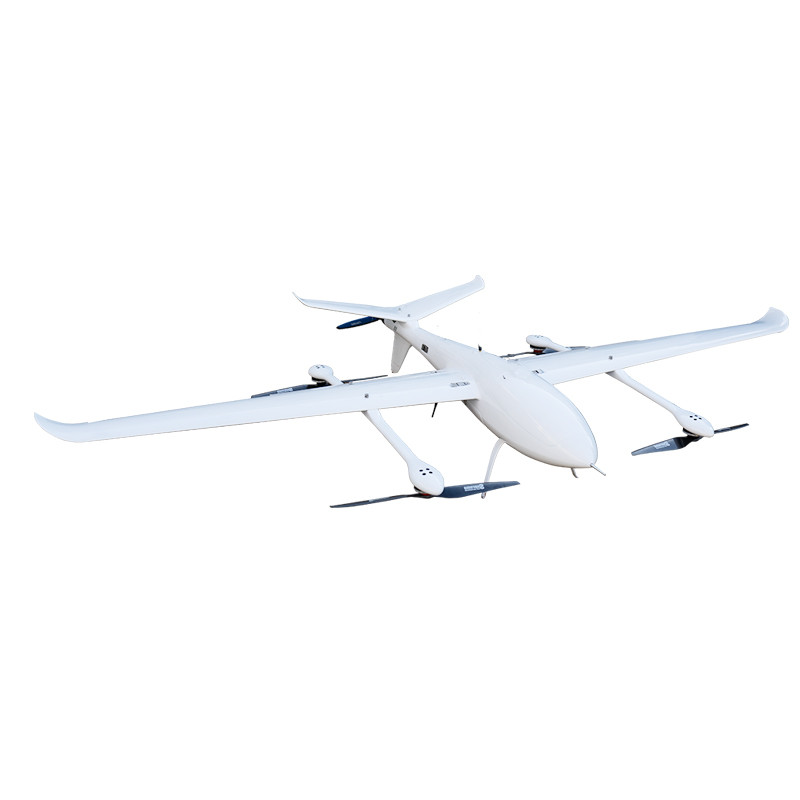

AYK-320 is a long-endurance VTOL designed for long-range inspection, mapping and survey.

AYK-320 VTOL features an advanced aerodynamic design. The bended lifting arm and tail wing upturned angle design greatly reduce resistance during the flight, the tail wing upturned angle design also ensures a large climb and descent angle.

The detachable & massive payload cabin of AYK-320 is just under the gravity center, also convenient for loading different task equipment, such as zoom cameras, oblique mapping cameras, and Lidar scanning system etc.

AYK-320 VTOL adopts the latest DLVR airspeed sensor with CAN interface, which features high precision and low-temperature drift.

AYK-320 adopts quick-mount design on both fuselage and cable connector, which makes it easy to assemble it in a short time. In particular, the detachable tail design has the advantages of reducing the volume and convenient transportation.



Specification:

Max. take-off Weight: 24kg
Operating Weight: 21.5kg
Basic Empty Weight: 11kg
Stall Speed: 17m/s
Cruising speed: 21m/s
Max cruising speed: 30m/s
Max climb angle: 15°
Max climb speed: 5.6m/s
Max descent angle: 25°
Max descent speed: 9.6m/s

Your Purchase Includes:
RTF Combo (Pixhawk / X7 + Pro):
1x AYK 320 VTOL
1x High-Efficiency Tail Motor
1x Tail ESC
1x 20 inch Propeller for Tail Motor
5x Servo
4x Motor for VTOL Mode
4x ESC for VTOL Mode
2x (pairs) 24 inch Propellers for VTOL Mode
2x UBEC
1x Pixhawk Cube Orange Standard Set with Here 3 GNSS
(or X7+ Pro Flight Controller with NEO 3 Pro GNSS)
1x DLVR Airspeed Sensor
1x DA16S+ Radio Controller
1x Carrying Case
1x Assembling, Tuned and Flying Test Service
Option:
2x Diamond 12s 27000mAh HV

Spesifikasi

Video

Dokumen
