AYK-250 VTOL Dual GPS Combo-CUAV X7+ Pro 15854
Chat PenjualDescription

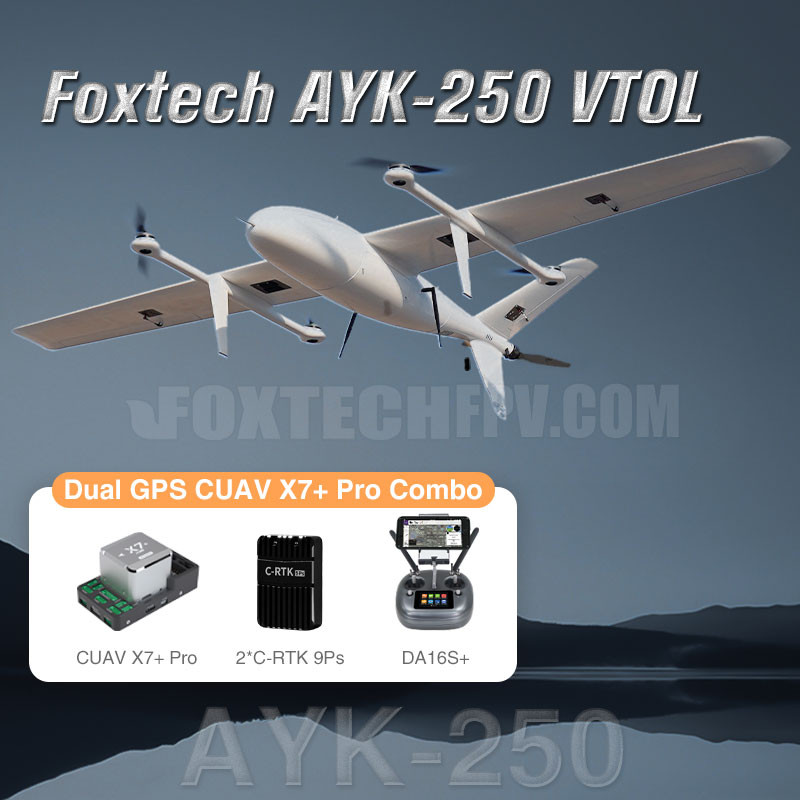

Foxtech AYK-250 is a long-endurance tail-pushed VTOL with high efficiency specifically designed for long-range inspection, surveillance and mapping jobs.
Foxtech AYK-250 adopts carbon fiber integrated molding process, which makes the whole body light and durable, the aerodynamic design and smooth surface ensure a low air resistance.
The quick-detach design on both fuselage and cable connector makes it easy to assembly the drone in a short time. In particular, the detachable tail design has the advantages of reducing the volume and convenient transportation. The detachable payload compartment is also convenient for loading different task equipment.
There is a DGPS version of AYK-250 that adopts dual GPS modules, providing GPS for yaw, higher locating accuracy, and eliminating compass calibration. DGPS version also supports propeller-direction-auto-lock function that fixes in the air in fixed-wing mode to reduce wind resistance.
With long duration and stable flight performance AYK-250 VTOL can be applied in inspection and surveillance,mapping and survey by loading different gimbal cameras or mapping cameras, such as Foxtech 10x/30x zoom cameras, 3DM-V3, Argus V2 oblique camera and MS600 multispectral camera etc.
In mapping combo AYK-250 VTOL is equipped with Foxtech MS600 multispectral camera and DA16S+ radio controller featuring 8km rc/data transmission range, which can be used for crop condition and water quality monitoring, resource investigation etc.
AYK-250 VTOL equipped with SEEKER-30 TR 30X zoom camera and T30S dual-screen ground control station featuring 15km rc/data/video transmission range can be used for long range inspection like public security, border defense and energy industries.
Specification:
Version: AYK-250
Type: VTOL
Color: Grey
Wingspan: 2500 mm
Length: 1260 mm
Material: Carbon Fiber
Frame weight: 3.8 kg
Basic empty weight: 7 kg (no battery)
Max. take-off weight: 0~3000 m@15 kg
Max cruising speed: 26 m/s@12.5 kg
Stall speed:15.5 m/s@12.5 kg
Max flight altitude:4800 m(Max.)
Wind Resistance: 10.8 m/s-13.8 m/s(fixedwing); 5.5 m/s-7.9 m/s(vtol)
Working voltage: 12S
Working temperature: -20℃~45℃；
Carrying case: 1300*530*470 mm
Dual GPS Combo:
1x AYK-250 VTOL Frame
4x VTOL Motor
4x VTOL ESC
1x Motor for Fixedwing Mode
1x ESC for Fixedwing Mode
2x Pair 17inch Propeller
1x 1712 CW Wooden Propeller
4x Servo
1x Flight Controller(CUAV X7+ Pro)
2x GNSS Module
1x DA16S+ Radio Controller
1x 25A BEC
1x Air Speedometer
1x Carrying Case
1x Assembling,tuned and Flying Test Service
